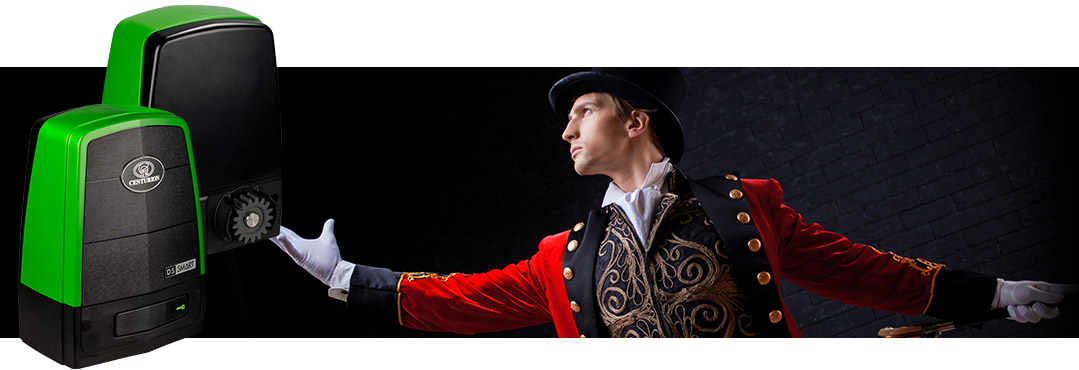

SMART. The intelligent choice
Our brand essence is “making your life easier” and, with the D5 SMART, we believe that we have created a product that is the very embodiment of this mission statement.
Taking what we’ve learned through more than 30 years of being the market leader in access automation, we are bringing you a solution that gives you everything from intelligent reporting to easy mobile-based setup and operation.
With unsurpassed convenience and control at your fingertips, you’ll love using the D5 SMART.
Main features
Speed
- The perfect balance between security and safety with a top speed of up to 36 metres per minute
Diagnostics and logging
- Makes your life easier with advanced diagnostic feedback
- Intelligent logging and reporting
Wireless user interface
- Wireless and effortless – easy setup and configuration from your smartphone
SMART hardware
- Provides the best experience for installers and end-users alike with easy access to mounting hardware and optimised cable management for the neatest installation around
All the most innovative technological features
- Onboard multichannel NOVA receiver with 1500 button memory
- Wireless and effortless – easy setup and configuration from your smartphone
- 24V system capable of performing more operations and offering extended battery backup and power failure autonomy
- New and improved theft-resistant cage with a patented design offering outstanding security and peace of mind
- Vibration sensor that can be connected to a third party device to notify you in the event that the gate motor is being tampered with
- Intelligent battery charger with onboard diagnostics and SMART communication between the charger and the controller
- Improved position control system incorporating hall effect technology – highly resistant to interference
- Individually-configurable inputs and outputs
- Convenient and intuitive single-action manual release
Get the most from your CENTURION D5-SMART
| Technical Data | D5-SMART | |
|---|---|---|
| Input voltage 1 | 90V - 240V AC +/-10% @ 50Hz | |
| Current consumption (Mains) | 200mA | |
| Battery charger current output | 1.3A | |
| Maximum number of operations per day | 150 | |
| Duty cycle - Mains present 2, 3 | 50% | |
| Motor voltage | 24V DC | |
| Motor power supply 5 | Battery-driven (Standard Capacity - 2x12V) | |
| Current consumption (motor at rated load) | 13A | |
| Input / Output sink currents (Max accessory current draw) | ||
| I/O 1-4 | 100mA (12/24V) | |
| I/O 5 and 6 | 3A (12/24V) 10sec Pulse | |
| Motor push force - starting | 30kgf | |
| Motor push force - rated | 17kgf | |
| Gate mass - maximum | 500kg | |
| Gate length - maximum | 100m | |
| Gate speed (varies with load)4 | 35m/min @ 17kgf | |
| Manual Override | Lockable with key release | |
| Operations in standby with 2 x 7Ah (28W) battery | ||
| Half day 5, 6 | 209 (Power Saving)/ 102 (Normal) | |
| Full day 5, 6 | 183 (Power Saving)/ 79 (Normal) | |
| Collision Sensing | Electronic | |
| Operating temperature range | -15°C to +50°C | |
| On-board receiver type | Code-hopping multichannel receiver with selective add and delete | |
| Receiver code storage capacity7 | 1500 Remotes | |
| Receiver frequency | 433.92MHz | |
| Degree of protection | IP55 | |
| Mass of unit packed (with standard kit, but excl. rack and battery) | 9.1kg | |
| Packaging dimensions (with standard kit, but excl. rack and battery) | 325mm wide x 244mm deep x 445mm high |
1. Can operate off a solar supply, consult your local dealer for assistance
2. Based on 25°C ambient temperature and unit not in direct sunlight
3. Based on a motor push force of less than 50% of rated (Starting and Running forces)
4. Gate opening and closing speeds can be configured to run slower depending
on the requirements of individual installations
5. Can increase battery capacity for longer standby times
6. Based on 4m gate, excluding all accessories
7. Multiple buttons per remote can be used
